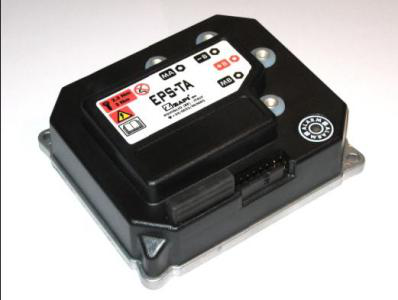

EPS TA (torque assisted) steering controller

EPS TA (torque assisted) steering controller

此紧凑且高性能价格比的转矩助手EPS适用于使用方向盘的24V叉车。通过EPS-TA驱动，PM电机提供一个额外的转向扭矩至从操作者得来的扭矩，从而简化叉车使用。为了遵守范畴III（工业叉车的安全规范En-1175），EPS-TA与Master μC（控制性能）和SlaveμC（安全性能）一起开发。

技术资料
功率部分
电压：24V
最大电流：50A
外界温度范围：-40℃~ +40℃
底板最大温度：75℃
(限制最大电流)
机械
尺寸：122x 142x 50mm
接插件：Molex Minifit
防护等级：IP54
输入/输出
2个数字输入
4个模拟输入
其他特征
16位微控制器
闪存
Can接口
串行连接

This compact and cost effective Torque assisted EPS is suitable for trucks fitted with tiller. Driven by EPS TA, the PM motor provides a steering torque additional to the applied one thus simplyfying the truck use. EPS TA complies with Cathegory III (EN954-1 Standard)

Technical details

Dual Microprocessors, both CAN Bus connected
Flash memory
Environmental Protection: IP54 or IP65 (with Ampseal connector)
Complies with European CE Standards
Power section
Power supply: 24V
Maximum current: 40A
Ambient Temperature range: -40° + 40°C
Maximum heatsink temperature: 75°C(starts to reduce current)

Mechanics
Dimensions: 122x142x50 mm
Connector: Molex Minifit
Protection: IP54

I/O
2 Digital Inputs
4 Analog Inputs (0-5V)

Other features
2 microcontrollers
Flash memory
Can interface
Serial link
