ACE-2 & ACE-2 PW inverter

ACE-2 & ACE-2 PW inverter

ACE-2 & ACE-2 PW inverterACE2的逆变器是适用于单或双驱动马达,高层次秩序采摘,并配有异步电动机以9KW

产品详情

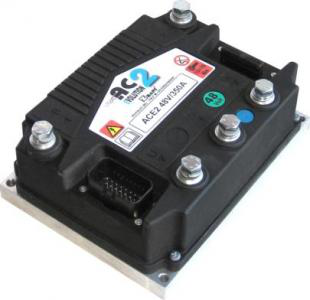

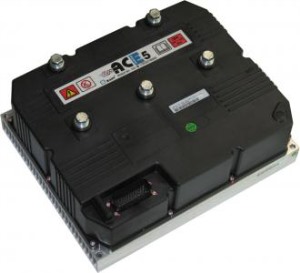

ACE-2 & ACE-2 PW inverter

ACE2的逆变器是适用于单或双驱动马达,高层次秩序采摘,并配有异步电动机以9KW牵引车的范围和平衡重式货车。


ACE2 Sensorless
  与ACE2变流器相同,但需使用无编码器的交流牵引电机。



技术资料



电源部分


电源:24V 36V 48V 80V 96V
最大电流ACE2的:
- 24V450 Arms (2’)
- 36V48V400 Arms (2’)
- 80V250 Arms (2’)
最大电流ACE2 PW
- 24V500 Arms (2’)
- 36V48V500 Arms (2’)
- 80V350 Arms (2’)
- 96V300 Arms (2’)
环境温度范围:-40°+40° Ç
最大的散热器温度:85°C
(开始,以减少电流)

力学

ACE2的尺寸:150x200x95毫米
ACE2PW尺寸:185x200x95毫米
连接:Ampseal
防护等级:IP65
铝基板或装散热器



I / O
4个数字输入(输入范围-BATT~+ BATT
2个模拟量输入(输入范围012V
2个输出驱动- BATTPWM控制,2,0 A连续
电流
1个输出-BATT,1.0A连续电流



其他功能



Flash存储器

 串行链路
接口


The ACE2 Inverter is suitable for reach and counterbalanced trucks with single or twin drive motors, high level order pickers and tow tractors fitted with asynchronous motors up to 9kW.

Sensorless/Sense Coil version
Same as above but with ZAPI patented sensorless/sense coil control algorithm to be used with encoderless AC motor.

Technical details

Power section
Power supply: 24V 36V 48V 80V 96V
Maximum current ACE2:
- (24V) 450 Arms (2’)
- (36V, 48V) 400 Arms (2’)
- (80V) 250Arms (2’)
Maximum current ACE2 PW:
- (24V) 500 Arms (2’)
- (36V, 48V) 500 Arms (2’)
- (80V) 350Arms (2’)
- (96V) 300Arms (2’)
Ambient Temperature range: -40° +40°C
Maximum heatsink temperature: 85°C
(starts to reduce current)

Mechanics
ACE2 dimensions: 150x200x95 mm
ACE2 PW dimensions: 185x200x95 mm
Connector: Ampseal
Protection: IP65
Available with Al base plate or with fitted heatsink

I/O
4 Digital Inputs (input range - Batt ÷ + Batt )
2 Analog inputs (input range 0 ÷ 12V )
2 Outputs driving to - Batt, PWM controlled, 2,0 A continuous
current
1 Output to - Batt 1,0 A continuous current

Other features
Flash memory embedded

Can interface
Serial link
