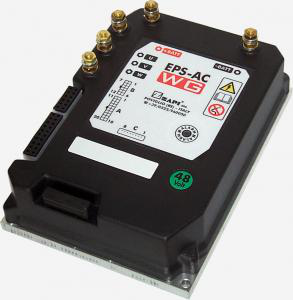

EPS AC WG steering controller

EPS AC WG steering controller

通过电线控制器转向，用于带线导选项的交流电机(EPS-AC + WG)。EPS-AC + WG控制两个不同的控制区域网络(CAN)，并执行多余的对CAN通讯系统的控制(通过两个在上面的微处理器)。第一个CAN通讯系统用来连接传感器(智能天线)。第二个CAN通讯系统遵循CAN公开规格。

技术资料
额定电压：24V 36V 48V 72V 80V
最大电流(1’)：70Arms (50A @ 72-80V)
尺寸：150x 210x 74 mm
RSR232系列连接
CAN Bus
两个独立的CAN Bus通讯系统
双微处理器，CAN Bus连接
闪存
Eeprom
内部计时表
防护等级： IP64
符合欧洲CE标准规定

Steer by wire controller for AC motors with wire-guidance option (EPS-AC + WG). The EPS-AC+WG controls two distinct control area network (CAN) and performs a redundant control of the CAN communication system (by using two on board microprocessors). The first CAN communication system is used for the connection with the pick up devices (smart antennae). The second CAN communication system follows the CAN open specification.

Technical details

Nominal voltage: 24V 36V 48V 72V 80V
Maximum current (1’): 70A (50A@72V-80V)
Dimensions: 150x210x74 mm
Can Bus (2 indipendent in WG version only)
Dual Microprocessors
Flash memory
Eeprom
Internal hour meter
Environmental protection: IP54
Complies with European CE Standards Cathegory 3
