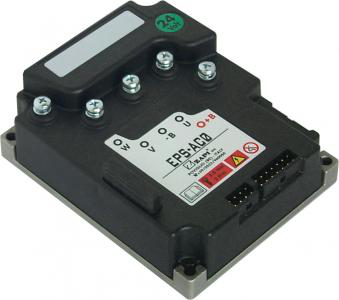

EPS AC0 steering controller

EPS AC0 steering controller

这是一个用于24/36V叉车的紧凑的高性能价格比的通过线缆控制器实现的转向系统，适合最大500W交流转向电机。它适用于使用手柄和方向盘的叉车。微处理器技术连同CAN Bus通讯系统，提供一个不费力的转向控制设备，有以下先进性能：
 当车辆速度加快时转向灵敏度降低。
 车辆速度与转向轮的角度成比例。
 在车把位置和转向轮的角度之间形成一个非线性关系。
 应要求，转向指令可以起源于远程单元，通过CAN Bus满足EN954-1要求：种类3标准。

技术资料
额定电压：24V 36V 48V
最大电流(2’)：50A (45A @ 48V)
尺寸：120x 150x 55 mm
Can-Bus
双微处理器，CAN-Bus连接
闪存
防护等级：IP54或IP65
(使用Ampseal接插件)
符合欧洲CE标准规定

This is a compact and cost effective steer by wire controller for 24/48V trucks fitted with AC steering motors up to 500W. It is suitable for handlebar and tiller trucks. Microprocessor technology,combined with the CAN Bus communication system, provides an effortless steering command facility, with several advanced features:
• Steering sensitivity reduces when the truck speed increases.
• Truck speed reduces in proportion to the angle of the steered wheel.
• A non-linear relationship between the handle bar position and the steered wheel angle can be made.
• On request, the steering command may originate from a remote unit via CAN Bus meeting the requirements of EN954-1: Category 3 Standard.

Technical details

Nominal voltage: 24V 36V 48V
Maximum current:
- EPS AC0: 50A (45A@48V)
- EPS AC0 WG: 70A
Dimensions: 120x150x55 mm
Can-Bus
Dual Microprocessors, both CAN Bus connected
Flash memory
Environmental Protection: IP54 or IP65 (with Ampseal connector)
